RAPID DEPLOYMENT

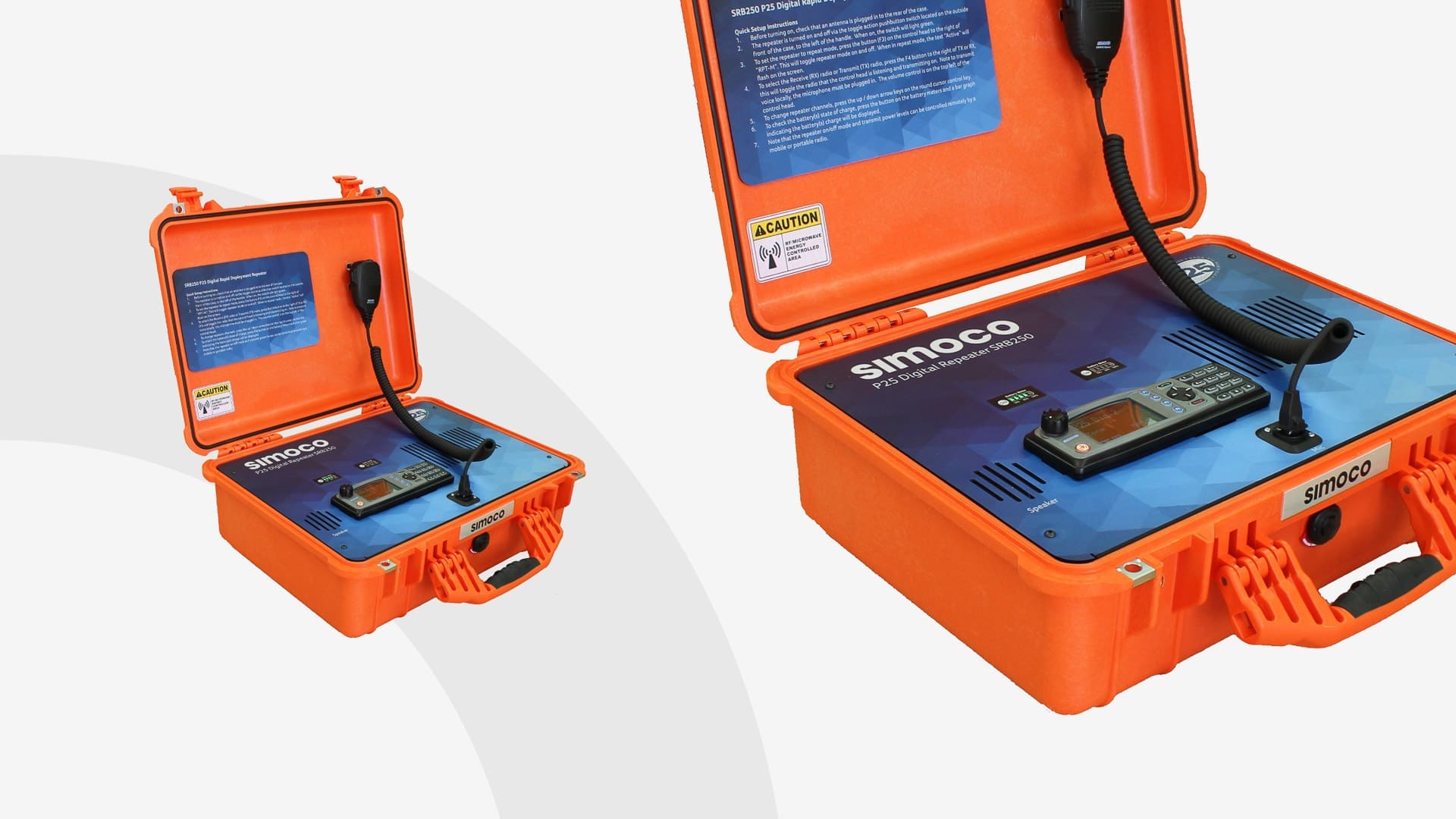

SRB250 P25 RAPID DEPLOYMENT REPEATER
DESCRIPTION
The SIMOCO SRB250 is a transportable rapid deployment repeater that is designed to provide radio coverage to a critical incident, emergency situation or extends existing Public Safety systems, either analogue or APCO Digital P25. It provides deployable “on demand” coverage for vehicle and portable radio users in VHF or UHF. It is an ideal solution to keep public safety and government agencies connected.
KEY FEATURES
- Ruggedised P25 repeater
- Rapid deployment
- P25 transparent repeat function, repeats encryption intact, regenerates P25 frames
- LiFePO4 (LFP) batteries for lightweight endurance and optimum voltage for radio modules
- Inbuilt duplexer
- Simple deploy and repeat mode (single button, closed box)
- High duty cycle operation with open lid, generously heat sinked power amplifier
- 25 Watt transmit power
- Battery state of charge LED indicators
- Customisations available
- Environmentally protected
- -20 to +60 degrees operation
TECHNICAL SPECIFICATIONS
VHF:136–174MHz
UHF:400–480MHz
UHF:440–520MHz
Channel Stability:
<1.5 ppm
Channel Bandwidth:
12.5 KHz
Zones/Channels:
40 Zones/1,500 Channels
Dimensions:
187h x 39w x 500d mm
Weight: 14 kg
Power Source:
Internal batteries
Optional external battery box
Option external power supply
1 or 2 LiFePo4 12.8 V DC 7.5 Ah
Internal Battery Life (90% Stby 10% Tx):
5 W Tx: 22 Hours
25 W Tx: 14 Hours
Internal Charger:
Single battery: 90% charge <2hours
Dual battery: 90% charge <4 hours
(from fully discharged)
Conformance:
AS4295, FCC, IC
Environmental Protection:
IP55
Operating Temperature:
-20° C to +60° C operating
25 W (lid open) | 45 mins Tx, 15mins Stby @ 25° C
25 W (lid closed) | 30 mins Tx, 30 mins Stby @ 25 °C
Hum and Noise:
>40 dB
Modulation:
C4FM
Transmitter Power:
3 levels programmable 1-25 W
Transmit Rise Time:
<25 ms
4 W @ <5% distortion
Blocking:
>95 dB at +/-1 MHz
Hum and Noise:
>40 dB
Intermodulation:
>70 dB
Selectivity:
>65 dB
Sensitivity:
<0.3 μV for 5% BER
